ScaldisA fast and efficient one head capping machine
Scaldis
Stainless steel chassis with integrated electrical cabinet
Intermittent starwheel
High performance
Glass doors
The Scaldis capper is a high-performance capping machine designed for precise closure of bottles up to 3000 bph.
x
Limited floorspace
x

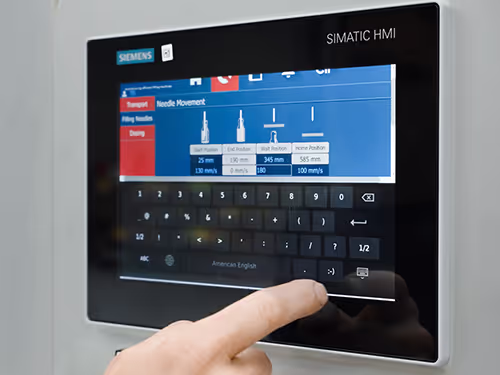

Intuitive operator panel
x

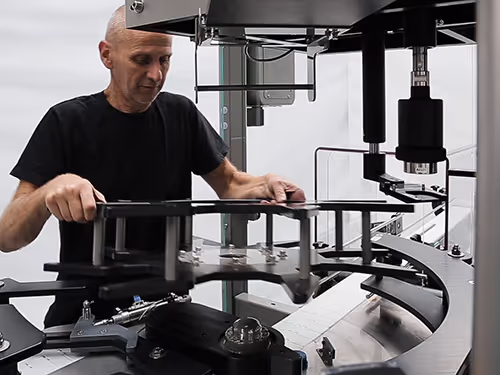

Format change over in less than 5 minutes
x

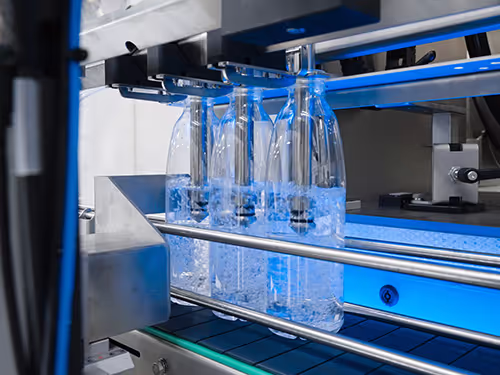

Servo driven nozzle movements following product level in bottle
Available models
No items found.
X
Anti slush device
The servo driven movement of the starwheel allows for gradual acceleration and deceleration and avoid liquid splashing out of the bottle during the rotation of the starwheel.
X
Quick release format change over.
Tool free change-over of capping head and bottle format parts.
X
Cap presence or alignment control
Photocells or cameras check the correct position and presence of closures before leaving the machine and provide signal to eject bottle on parallel conveyor.
X
Capping torque control
Torque can be adjusted from operator panel also during operation. Capping torque for each type and color of cap can be stored in and recalled from a recipe on the operator panel resulting in correct set up of the machine after format change over.
